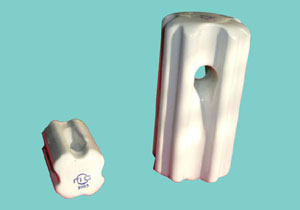

Strain Insulators for HV overhead lines
|
Applicable standard
一、Use, structure, Type
Overhead line uses to strain type porcelain Iusulators is exchanged used in overhead line and communication line of AC,DC in pole pulll line or thght wive with make iusulation use pull line use cross its hole or inlay on its line groove
Disgncotion：J-straim Iusulator; The Number after Machanical falling Loud
二、Major structural size
|
| Cat No |
Type |
fly |
L |
I |
D |
B |
b |
d |
R |
weighe |
| 16005 |
J-0.5 |
1 |
38 |
- |
30 |
- |
20 |
- |
4 |
0.1 |
| 16004 |
J-1 |
1 |
50 |
- |
38 |
- |
26 |
- |
6 |
0.1 |
| 16003 |
J-2 |
1 |
72 |
- |
53 |
- |
30 |
- |
8 |
0.2 |
| 16001 |
J-4.5 |
2 |
90 |
42 |
64 |
58 |
45 |
14 |
10 |
1.1 |
| 16002 |
J-9 |
3 |
172 |
72 |
- |
88 |
60 |
25 |
14 |
2.0 |
| Cat No |
Type |
pnwerfrey, voltaye |
Meehauical failing Ioucf Less than |
| Dry finsholer |
Wet flushorer |
| 16005 |
J-0.5 |
4 |
2 |
5 |
| 16004 |
J-1 |
5 |
2.5 |
10 |
| 16003 |
J-2 |
6 |
2.8 |
20 |
| 16001 |
J-4.5 |
20 |
10 |
45 |
| 16002 |
J-9 |
30 |
20 |
90 | |
|
